Picture shows thin-walled plastic part produced by thin wall injection moulding

Solutions for Thin Wall Injection Moulding

Save Material and Reduce Cycle Time

With over 20 years’ experience in thin wall injection moulding, we have designed two dynamic and high-precision powerhouses with our hybrid and fully electric machines e-speed and e-motion. They are especially suitable for applications with high to extreme flow-path to wall-thickness ratios. Thanks to iQ motion control, its powerful clamping unit offers up to 12% shorter dry cycle times at the touch of a button.

Our Injection moulding machines for thin-wall injection moulding at a glance

e-motion & e-speed

Picture shows all-electric high-performance injection moulding machine e-motion from ENGEL

e-motion:
Thin-wall injection moulding with maximum efficiency

  • All-electric high-performance injection moulding machine

  • Up to 50% less energy consumption compared to hybrid machines

  • For applications with flow path to wall thickness ratios of up to approx. 400:1

  • Injection speeds > 600 mm/s

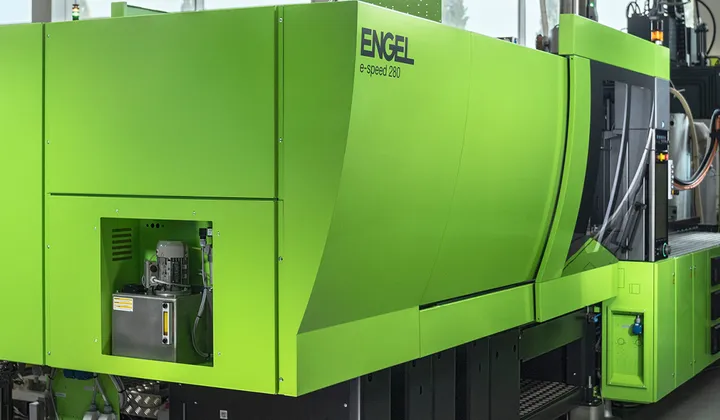

Picture shows hybrid high-performance injection moulding machine e-speed from ENGEL

e-speed:
Thin-wall injection moulding with maximum performance

  • Hybrid high-performance injection moulding machine

  • For maximum flow path to wall thickness ratios

  • For direct injection moulding of rPET

  • Extremely short injection times < 0.05 s

Your Advantages with ENGEL Solutions for Thin-Wall Injection Moulding
Short cycle times thanks to all-electric clamping unit
Picture shows toggle clamping unit

For the requirements of thin wall injection moulding, we have developed a clamping unit with an encapsulated five-point toggle lever. This not only ensures dry cycle times of well under two seconds, but also perfect cleanliness in the mould cavity. All moving elements, as well as the ejector, are sealed and prevent the formation of oil mist or dirt accumulation.

Reduced production costs through electric drives
Picture shows electric drive

Water-cooled servo-electric drives make the injection moulding machine the optimum symbiosis of efficiency and maximum performance. Reproducible cycles thus ensure consistent part quality for your thin-walled plastic parts.

Process reliability thanks to customised injection units
Picture shows injection unit

We have developed dynamic and precise all-electric and hybrid injection units for the production of thin-walled plastic parts. Plasticising components developed for typical thin-wall injection moulding materials ensure high melt quality. Extra powerful servomotors and hydraulic accumulators guarantee reliable filling of the cavities even with extremely high flow path/wall thickness ratios and the shortest injection times.

Increase the availability of your production plant
Picture shows application engineer with ENGEL customer

Shortest cycle times require machinery with high dynamics. Large batch sizes mean continuous operation 24/7. Our service experts are like our machines - available to you round the clock. So that if the worst comes to the worst, production of thin-walled plastic parts can start up again quickly.

Products and Services for the Production with Thin Walled Injection Moulding
Picture shows all-electric e-motion injection moulding machine for thin-walled plastic parts from ENGEL

The efficient thin-wall injection moulding machine

e-motion

Efficient all-electric production of thin-walled injection moulded parts - up to 50% less energy consumption compared to hybrid machines

Picture shows hybrid injection moulding machine e-speed for thin-walled plastic parts from ENGEL

The powerful thin-wall injection moulding machine

e-speed

The hybrid injection moulding machine with hydraulic accumulator for thin-wall applications with the highest performance requirements

Picture shows processing of rPET in injection moulding on an e-speed machine

Direct processing of rPET in injection moulding

Solutions for injection moulding thin-wall packaging made of PET and rPET

Picture shows service technician in front of an ENGEL injection moulding machine

Intelligent System Protection as Part of the Service Package

protect

Benefit from more cost security through comprehensive protection of your system in the first ten years of operation.

Picture shows plant manager at Greiner Packaging

As a producer of plastic packaging, we find that ENGEL listens to us. Suggestions we make are incorporated into the development of the machines.

Engelbert Pranzl, Plant Manager at Greiner Packaging
Are you looking for solutions for thin-wall injection moulding?

Our experts will be happy to advise you. Together we will find a way.

Success Stories in Thin Wall Injection Moulding
Picture shows injection moulding machine e-motion from ENGEL
Energy consumption of the injection moulding machine down, output up

The performance of electric injection units is constantly increasing. Even challenging applications such as the lid of a thin-walled container can now be produced on fully electric injection moulding machines.

Picture shows plastic margarine tub
Injection Compression in the Packaging Industry
Challenging Application for the ENGEL e-speed

The combination of the special ENGEL coinmelt process with a stack mould enables competitive unit costs with low energy consumption.

Picture shows thin-walled bucket
From the Thin-Wall to the Ultra-Thin-Walled Bucket
Injection Moulding Requirements and Developments in the Packaging Sector

The ongoing weight reduction of thin-walled packaging by reducing wall thickness is an ongoing topic in the packaging industry. This trend places increasing demands on injection moulding machines.

Picture shows application engineer with ENGEL customer
Tips for Process Optimisation in Injection Moulding
Interesting Facts from our Application Engineering expert

Why do we recommend optimising the injection moulding process? By comprehensively and critically evaluating the process and the production conditions, you define an efficient production flow for greater stability and performance.

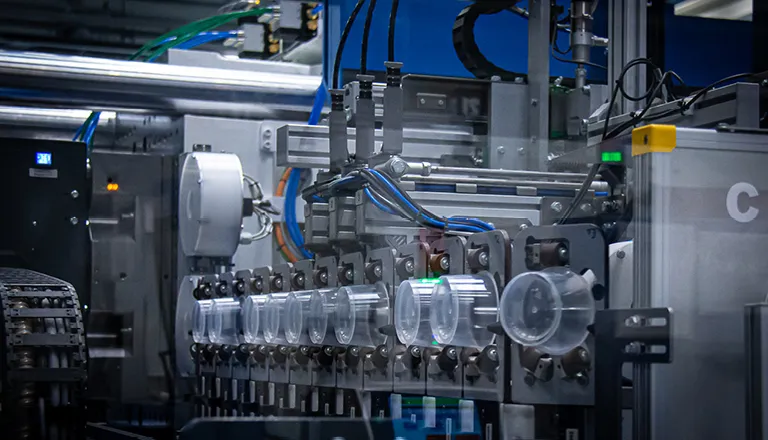

Picture shows production of a plastic yoghurt pot
Greiner - Leader in Thin-Walled Packaging

Greiner Packaging reduces the wall thickness of food containers by a quarter with e-speed injection moulding machines from ENGEL. At the same time, efficiency is increased. Climate neutrality is the goal of the Austrian packaging manufacturer.

Production of Thin-Walled Plastic Parts
  • All-electric thin-wall injection moulding

    A high-performance injection unit for the e-motion enables the production of thin-wall packaging with a flow path to wall thickness ratio > 1:400.

  • Thin Wall Injection Moulding with Stack Mould

    Margarine tubs made of polypropylene are produced on our e-speed injection moulding machine with integrated in-mould labelling (IML).

  • Thin Wall Injection Moulding with In-Mould Labelling (IML)

    A double-cavity mould for 1-litre buckets with reduced wall thickness and IML shows what our fastest hybrid packaging machine can do.

  • Production of a Thin-Walled Cartridge

    In the production of cartridges, the e-speed demonstrates uncompromising precision and maximum speed - even with complex components.

Examples of Thin Wall Injection Moulding

Diverse applications of thin-walled plastic parts

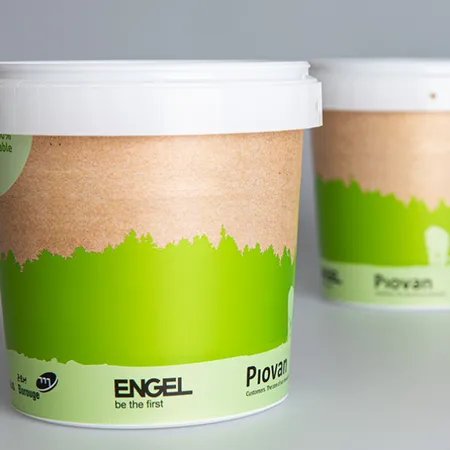

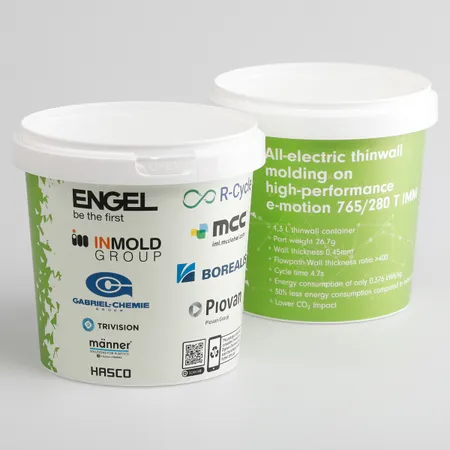

1.3 litre bucket

1.3 litre bucket produced on a fully electric e-motion injection moulding machine

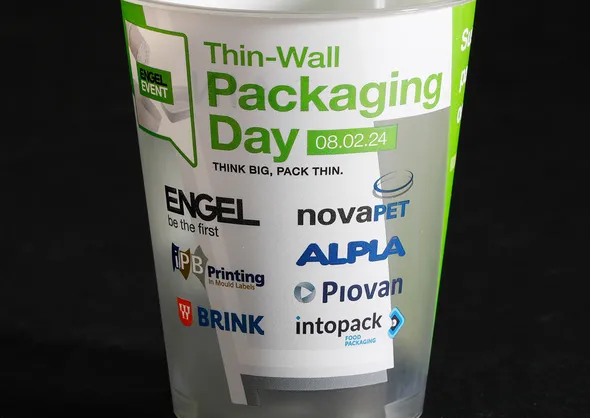

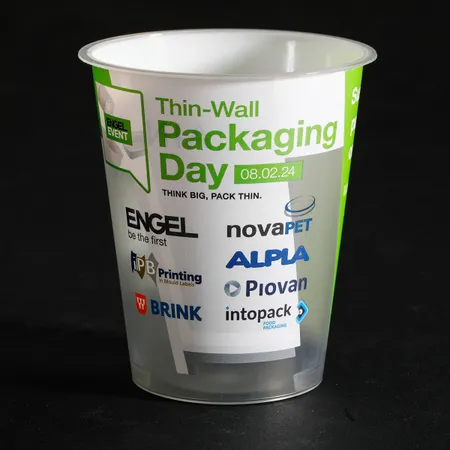

rPET cup

Cups made from 75% PET and 25% rPET produced on an e-speed injection moulding machine

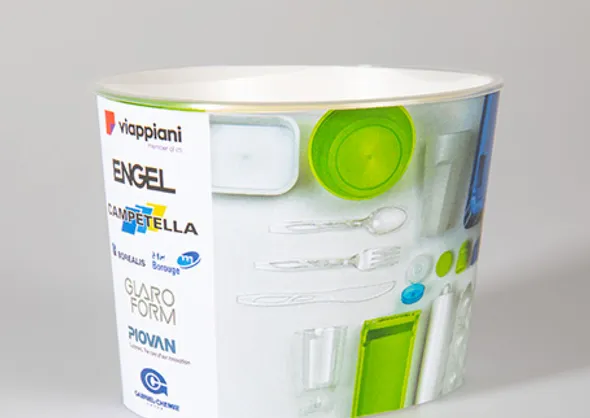

Oval plastic packaging

Thin-walled plastic packaging produced on an e-speed injection moulding machine

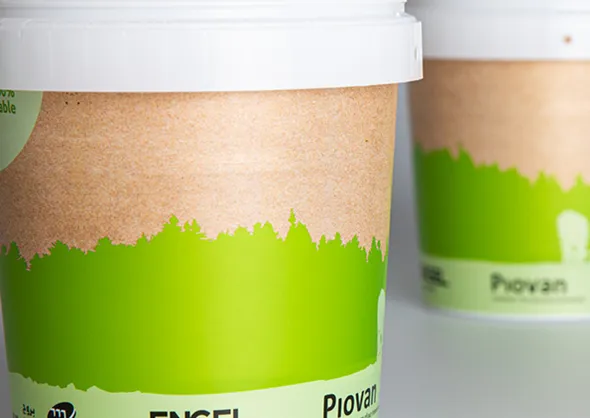

1 litre bucket

1 litre bucket produced on an e-speed injection moulding machine

Margarine tubs

Margarine tubs produced using injection compression moulding on an e-speed injection moulding machine
