Directly processing of recycled material in the 2-stage process
duo 900 – the powerful two platen machine

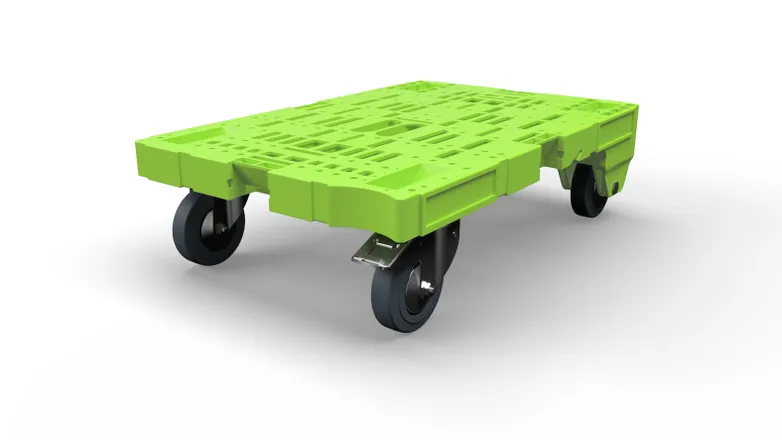

Dolly pallet made from recycled plastic flakes
With a new, two-stage process, we make it possible to process plastic waste as flakes in injection moulding directly after grinding. Since granulation as a separate process step is no longer necessary, the innovation significantly increases energy and cost efficiency in plastics recycling. At K2022, we will be demonstrating the new two-stage process for the first time with a live exhibit, which can be seen at the ENGEL trade fair stand in the Circular Economy Forum in the open-air area between Halls 11 and 16.
 "Powerful two-plate machine and dolly pallet | ENGEL")
Technical data
| Closing force | 9,000 kN |
| Injection unit | Two-stage injection unit with melt filter and degassing 12060H | 80Z |
| Screw | Ø 135 mm G0, L/D 12 | Ø 80 mm G16 s modified, L/D 28 |
| Material | PE/PP blend, PCR regrind |
| Tool | Haidlmair |
| Cavities | 1 |
| Automation | viper 40, pallet changer, in-mould labelling |
| Technology | Two-stage process with melt filter and degassing |
| Cycle time | 80 s |
| Shot weight | 3,670 g |
| Energy consumption | 95 kWh/h | 0.4 kWh/kg (entire production plant) 92 kWh/h | 0.4 kWh/kg (injection moulding machine) |
The powerful, large two-platen injection moulding machine in a compact design
 "Dolly pallet made from recycled plastic flakes")
>
 "Logo | R-Cycle"){kind=logo}
R-Cycle
R-Cycle documents the properties during production and makes this data available to improve the sorting process at the end of the life cycle.
For this pallet, a digital product passport was created in R-Cycle that records relevant information during grinding, granulating and injection moulding.
 "Material Cycle")
Pallet is shredded and returned to the cycle
The pallets that are injected at the K fair are transported to the Lindner booth. Lindner shreds the pallets live at the fair and returns the regrind to ENGEL booth. This cooperation is demonstrated live at the trade fair every day. Together we close the cycle!
)
>
-
