  • K2022 duo speed 700

The dynamic two-platen machine

duo speed 700

More efficiency in the production of standardised large containers

Together with our development partner HAIDLMAIR, we have succeeded in reducing the cycle time for manufacturing large logistics products by 25 percent. Responsible for this leap in performance is the ENGEL duo speed high-performance large-scale machine in combination with an innovative mould technology. This enables a significant increase in economic efficiency, especially for the production of logistics products with standardised dimensions, materials and weights.

Picture shows dynamic two-platen machine

Technical data

Closing force 7,000 kN
Injection unit 8310, with hydraulic accumulator
Screw Ø 120mm, G16s, L/D 25
Material HDPE M80064s, Sabic
Tool Haidlmair
Cavities 1
Automation easix articulated robot, pallet changer, cooling station
Cycle time < 25 s
Shot weight 2,000 g
Energy consumption 135 kWh/h | 0.4 kWh/kg (entire production cell) 132 kWh/h | 0.4 kWh/kg (injection moulding machine)
Find out more about this machine series

The fast, two-platen large-scale machine for packaging and logistics

Partner
HAIDLMAIR
Piovan
SABIC
Teledyne FLIR
HAIDLMAIR
Piovan
SABIC
Teledyne FLIR

More efficiency in the production of standardised large containers

Video shows production of standardised large containers with ENGEL duo speed 700
Product Highlights
Picture shows iQ process observer software on the injection moulding control unit

Smart process monitoring

iQ process observer

With this intelligent software solution hundreds of process parameters can be monitored continuously and effortlessly across all four phases of the injection moulding process - plasticising, injection, cooling and demoulding.

Image shows e-connect portal on screen

Customer portal

e-connect

The e-connect customer portal is becoming the central entry point into the world of digital injection moulding. The online platform is being expanded into a fully-fledged digital ecosystem. It includes solutions across the entire lifecycle of your equipment - from design and sampling to production and maintenance & service.

Picture shows iQ weight control software on ENGEL injection moulding machine control unit

Compensation of fluctuations in plastic viscosity

iQ weight control

The software optimises the injection volume during the ongoing injection moulding process.

News from injection moulding
  • Picture shows 29/25 plastic closures produced on an ENGEL injection moulding machine.
    Susanne Zinckgraf
    Susanne Zinckgraf
    April 27, 2022
    Blog
    Stable injection moulding processes with iQ weight control
    April 27, 2022

    Intelligent assistance systems do a great job of ensuring consistent part quality, even in the high-performance range.

    • digital solutions
    • packaging industry
    • cost effectiveness
    8 minutes
  • Picture shows
    Blog
    Processing of plastic recyclates with the dosing method
    April 7, 2021

    Usage of recycled materials for non-standardised logistics products is on the rise. See how ENGEL’s skinmelt technology contributes to high-quality parts consisting of a high share of regrind.

    • recycling
    • technology
    • consultancy
    8 minutes

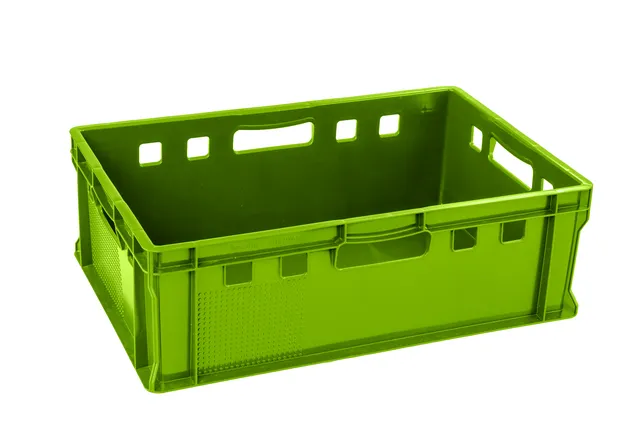

  • Picture shows stackable logistics boxes
    News
    Greater cost effectiveness in the production of large containers
    June 22, 2022

    In collaboration with development partner HAIDLMAIR, ENGEL has succeeded in reducing the cycle time for manufacturing large logistics products by 30 percent. The ENGEL duo speed high-performance machine, in combination with innovative mould technology is responsible for this performance boost.

  • Picture shows customers and partners in our new Packaging Centre
    News
    New ENGEL Packaging Centre launched
    May 20, 2022

    Rising energy prices, establishing a circular economy and changing consumer needs pose serious challenges for manufacturers of plastic packaging.

  • Videos

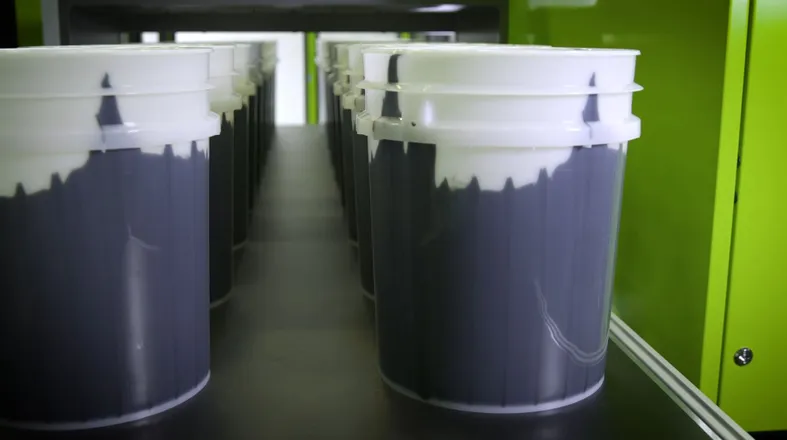

    Production of 5-gallon pail with core made of recycled material on duo speed injection machine

    See how our fast two-platen injection moulding machine duo speed can not only shorten production time but also enables you to process recycled material.

  • Videos
    How Schöfer saves time in injection moulding troubleshooting with the ENGEL iQ process observer

    Data and facts instead of pure intuition: find out how Schöfer, an Upper Austrian manufacturer of high-quality plastic components, brings transparency into the injection moulding process and eliminates errors by using our digital assistance system iQ process observer.
