The flexible vertical machine for overmoulding inserts Vertical injection moulding machine insert

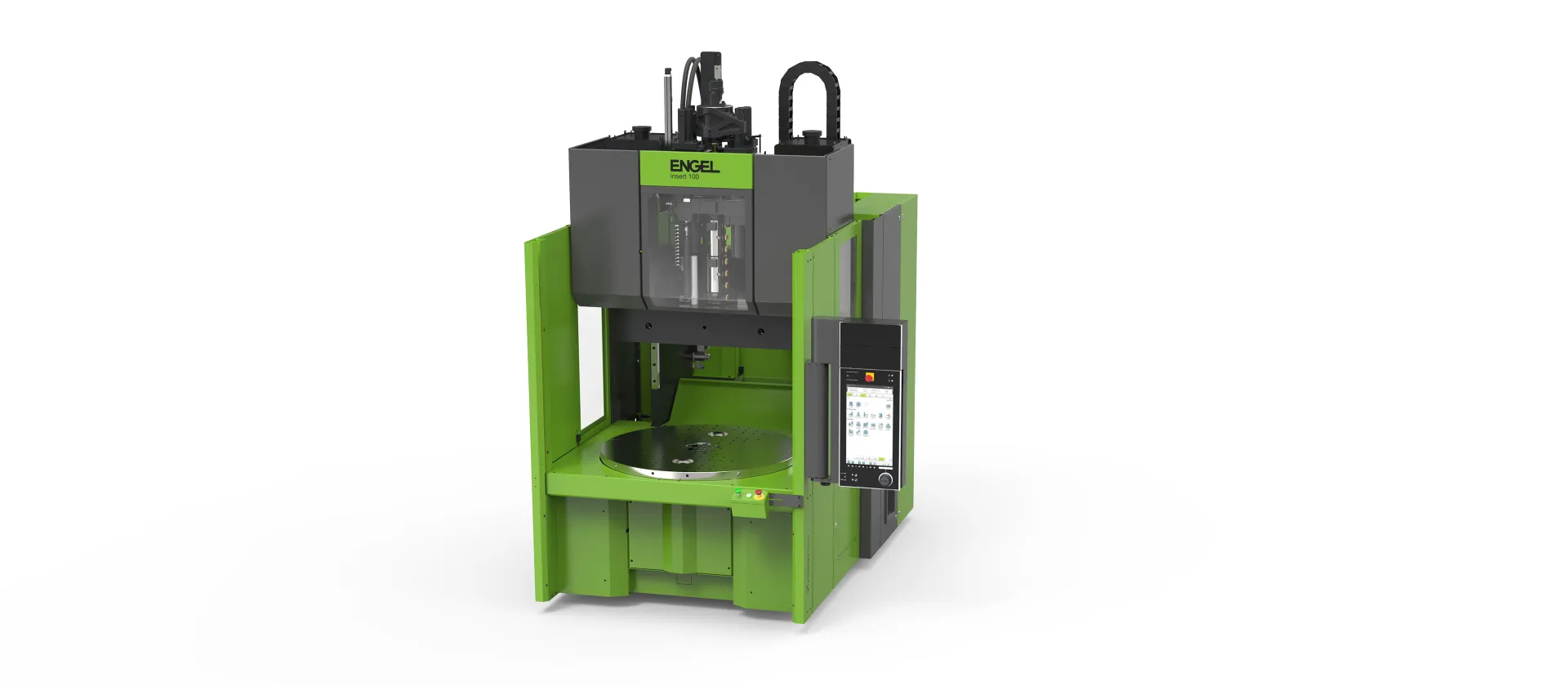

Picture shows injection moulding machine for overmoulding inserts

Our insert series is the best choice for insert moulding. The wide range of options and the flexible machine concept allow the machine to be adapted to your individual requirements. The integration of special automation is possible without any problems. You get an economical system and make a targeted investment.

Vertical

Machine type

Servo-hydraulic

Drive type

< 3.000 kN

Clamping force

Overmoulding inserts in practice

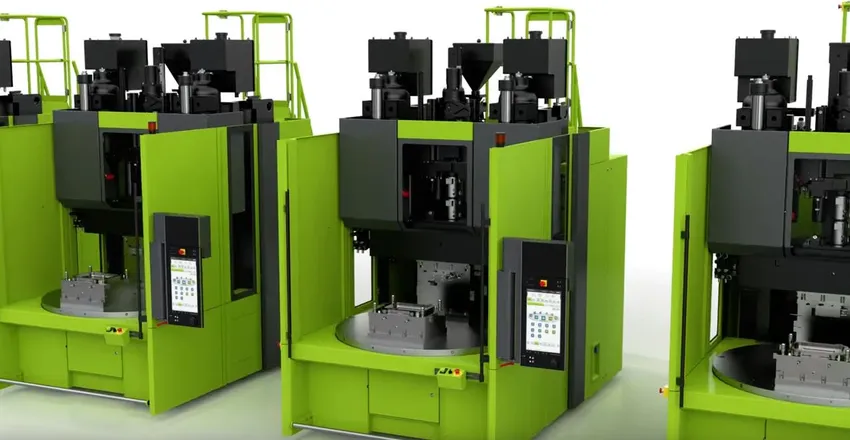

  • The insert series in detail

    The performance of our vertical injection moulding machine is illustrated by a production cell for mobile phone covers made of organic sheets.

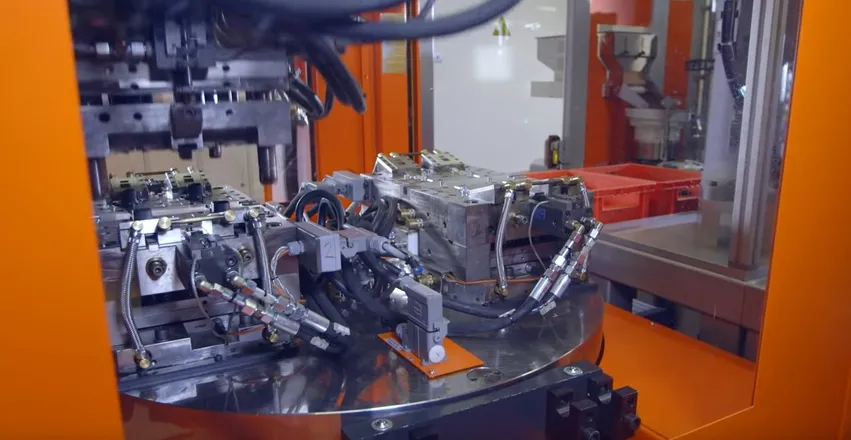

  • 60 inserts in 36 seconds cycle time

    Fully automated production process for sensor housings in practice

  • Moulding and overmoulding of organo-sheets

    In addition to overmoulding inserts, the insert series can also be used to form fibre mats into three-dimensional structures

Picture shows Head of Product Management Tie-bar-less & Vertical Machines at ENGEL Austria

Our customers particularly appreciate the ergonomic working height and the spacious tool room. The high energy efficiency thanks to ecodrive is another plus point.

Franz Pressl, Head of Product Management Tie-bar-less & Vertical Machines at ENGEL Austria
The advantages of the vertical machine insert
Flexible machine concept thanks to a wide range of options
Picture shows insert injection moulding machine

The insert injection moulding machine is adapted precisely to your requirements. A wide range of options offers great scope: horizontal or vertical injection unit, multi-colour design, with sliding table or rotary table, for manual parts handling or with extensive special automation. We supply you with a vertical injection moulding machine made to measure.

Small footprint for more productivity
Picture shows vertical injection moulding machine for overmoulding inserts

Our vertical injection moulding machine is designed to take up as little space as possible. Especially versions with a vertical injection unit require very little floor space. The insert is therefore not only a solution for overmoulding inserts, but also for confined spaces.

Energy-efficient production with ecodrive
Picture shows ecodrive

Our servo-hydraulic drive concept ecodrive keeps your energy costs low. Thanks to intelligent pump control, we achieve low power loss and hardly any noise or heat emissions. You save expensive energy, use less cooling water and protect the environment.

Wide range of options for mould temperature control

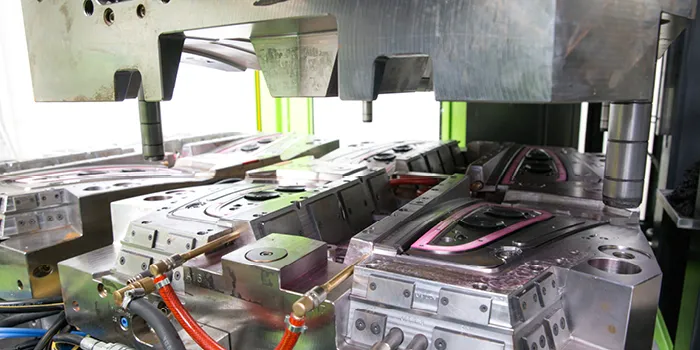

Picture shows overmoulding of inserts in a vertical injection moulding machine

In vertical machines for overmoulding inserts, the possibilities for guiding water for temperature control are often limited due to the design. With our insert, the hoses can be fed to the mould both from below and from above. The temperature control can thus be optimally designed. You avoid unnecessary waste and energy consumption.

Picture shows Head of Product Management Tie-bar-less & Vertical Machines at ENGEL Austria
Would you like to overmould inserts?

We will be happy to accompany you on the way to an individual machine and solution concept for your application.

Available machine sizes of the insert H series
Picture shows table of available machine sizes
Available machine sizes of the insert V series
Picture shows table of available machine sizes
Complementary products and services for overmoulding inserts
Picture shows injection moulding temperature control by ENGEL

Reduce Energy Costs with Intelligent Temperature Control

You save up to 85% of your energy costs thanks to intelligent temperature difference control instead of rigid flow.

Image shows injection moulding automation solution from ENGEL

Automation

We offer a wide range of components for automated parts handling: From safety guards, conveyors and robots to complete injection moulding systems.

Picture shows application engineers with ENGEL customers

Application technology

Discover new possibilities for the production of injection moulded parts with our extensive application technology expertise.

Picture shows injection moulding in the electronics industry

Industry solutions electronics

Electronic components made of plastic are often moulded with inserts. We have the right solutions for this.
