Ready to mount sealing production
victory electric 1565/220
The electric, tie-bar-less victory electric 220, in combination with a viper 40 fully integrated into the CC300 plus control system, produces a precise seal for a power converter housing. The result: a fully automated, compact production process, ideal for applications with high demands on geometric accuracy.
 "Exhibit victory electric 1565/220 | ENGEL")
 "LSR sealing | ENGEL")
 "Front view exhibit victory electric 220 | ENGEL")
 "Back view exhibit victory electric 220 | ENGEL")
 "LSR sealing | ENGEL")
 "Front view exhibit victory electric 220 | ENGEL")
 "Back view exhibit victory electric 220 | ENGEL")

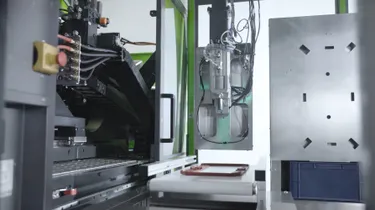

Fully automated, compact production cell for maximum utilisation of shopfloor space
A complete system designed for precision and efficiency
 "LSR sealing | ENGEL")
High shot weight and flash-free parts directly out of the machine. A sharply defined LSR sealing with the tightest tolerances. Efficiency and precision in series production.
Technical details about the production cell
| Application | Sealing |
| Clamping force | 2,200 kN |
| Injection unit | 1565 |
| Screw | Ø 70 mm, G7, L/D 16 |
| Mould | ACH Servo Shot |
| Material | LSR SHIN-ETSU KEG 2003H-50 A/B |
| Cavities | 1 |
| Automation | ENGEL viper 40 |
| Cycle time | ~ 70 s |
| Shot weight | 240 g |
| Energy consumption | 10.80 kWh/h, 0.75 kWh/kg (entire production cell); 1.78 kWh/h, 0.124 kWh/kg (injection moulding machine) |
:focal(1044x774:1045x775))
>
 "Optimise plastic viscosity | ENGEL")
iQ weight control
The iQ weight control software detects material fluctuations in real time and automatically compensates for them.
Find out more about our digital solutions in the inject AI area.
