Lightweight construction for urban mobility
victory 1560/180
Bicycle handlebars made of polyamide are made on the tie-bar-less victory injection moulding machine using the ENGEL fluidmelt process – a solution for producing hollow parts in injection moulding. The combination with unidirectional (UD) continuous fibre tapes gives the component additional stiffness and structural strength. The result: weight savings combined with high stability and maximum design freedom. The bicycle handlebar is one of the JEC Composites Innovation Award finalists in the category Sport, Leisure & Recreation.
 "Exhibit victory 1560/180 | ENGEL")
Detailed placement of UD carbon fibre tapes
Fully assembled cockpit handlebar

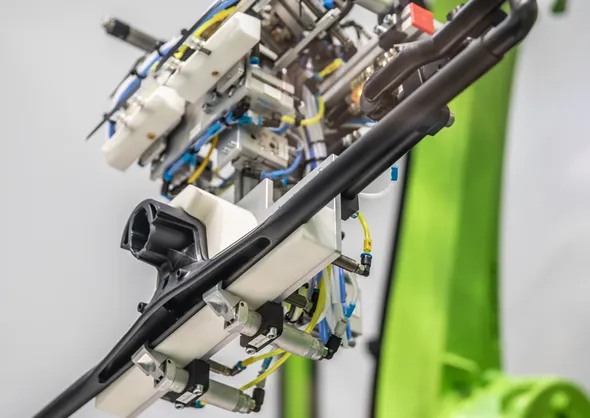

Injection moulded handlebar on the EOAT

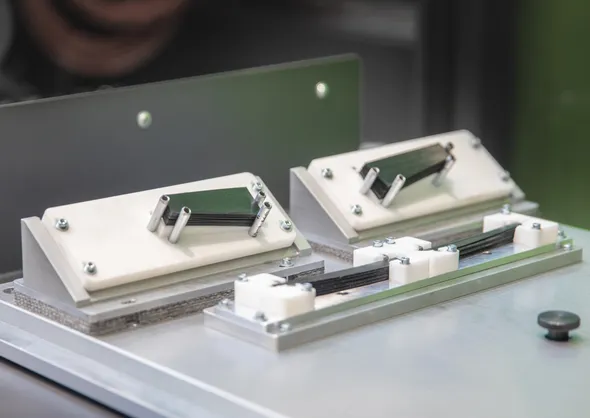

Cut-to-size tapes ready for placing in the mould and overmoulding
Perfect use of tie-bar-less mould area
Complete automation in a minimal footprint
Top view of the compact injection moulding cell
 "Application bicycle handlebar | ENGEL")
The combination of ENGEL fluidmelt and UD carbon fiber tapes not only enables lighter and more stable components, but also offers maximum design freedom.
Technical details about the production cell
| Application | Cockpit Handlebar |
| Clamping force | 1,800 kN |
| Injection unit | 1560 |
| Screw | Ø 60 mm, Standard 3-zone geometry G1, L/D 20 |
| Mould | Simoldes |
| Material | PA 6 GF50, TECHNYL XC 2442 BK |
| Cavities | 1 |
| Technology | ENGEL fluidmelt |
| Automation | ENGEL easix KR22 |
| Cycle time | 70 s |
| Shot weight | 500 g |
