Picture shows service technicians using iQ vibration control

Optimise Cycle Time and Positioning Accuracy for Robots

Automatically Compensate for Vibrations with iQ Vibration Control

Our viper linear robots enable economical operation: they are lightly built and at the same time travel stably. With the digital solution iQ vibration control, vibrations are automatically compensated. This leads to increased robot position accuracy. Immediately after the end of the movement, the robot can deposit or remove the components. This saves you valuable cycle time. iQ vibration control is compatible with ENGEL viper linear robots.

How You Can Benefit From Vibration Compensation
Automatic positioning of the robot for stable processes
Picture shows linear robot viper from ENGEL

Vibrations can be caused by the moving machine, the mould, or the ejector. Our digital solution compensates for both the internal vibrations of the robots and external influences. By automatically reducing natural vibrations, you can adjust the positioning accuracy of the robots at the touch of a button. Hence you benefit from more process reliability in your production.

10% shorter removal and pick-up times
Picture shows linear robot viper removing a component from an injection moulding machine by ENGEL

iQ vibration control reduces vibrations and leads to higher path and positioning accuracy for robots. At the same time, the software ensures an optimised motion sequence. The produced components are removed from the mould and picked up from the conveyor belt more quickly. This allows your viper linear robot to work with shorter cycles at the same performance level.

Extended robot service life through protection of the mechanics

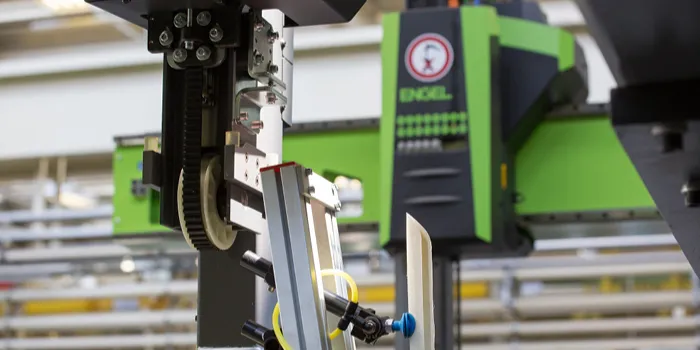

Picture shows robot mechanics of ENGEL linear robots

Vibrations cause deterioration and are thus a major cause of wear and tear on materials. The built-in mechanics of your viper linear robot are protected from vibrations and external influences by vibration control.

In this way, systems produce sustainably and at a constant level over a longer period of time. The iQ vibration control software ensures improved robot position accuracy and their longevity.

Do You Have Questions About iQ Vibration Control?

Our specialists are happy to advise you. Find out how you can optimally regulate robot position accuracy with iQ vibration control.

Picture shows positioning of a linear robot from ENGEL
5 Steps to Stable Production Processes

How iQ vibration control automatically optimises the robot position accuracy

  1. Weight and payload of the robot are stored in the system

  2. Trajectory and speed are calculated

  3. Vibration sensor determines the deviation between path and actual vibrations

  4. Motor currents regulate the calculated deviation

  5. Robot movement is stable

Result:

  • Fast and accurate positioning for robots

  • Shorter removal and recording times

  • Protection of the mechanics increases the service life of the robot

  • More process reliability in production

Picture shows team leader smart robot at ENGEL Austria

With the digital solution iQ vibration control, the movements at the end of the vertical axis near the gripper are measured in our viper linear robots. Acceleration sensors compensate for the vibrations via the controller and servo drives, optimising the robot position accuracy.

Matthias Oberherber, Team Leader smart robot at ENGEL Austria
Picture shows Product Manager Automation at ENGEL Austria

The active compensation of robot vibrations ensures fast and accurate positioning of the robot. It functions independently of external influences such as the movements of the clamping platens, ejectors, or peripherals. The result: stable and safe production processes.

Sebastian Picheta, Product Manager Automation at ENGEL Austria
  • How iQ Vibration Control Works

    See how the iQ vibration control software works. For fast and accurate positioning of the robot.

  • Automation Solutions From a Single Source

    Coordinated robots & system components together with digital solutions enable stable production processes and high part quality
