Surface Innovation Days 2026 at INEVO demonstrate the economic viability of ENGEL clearmelt technology for exterior components

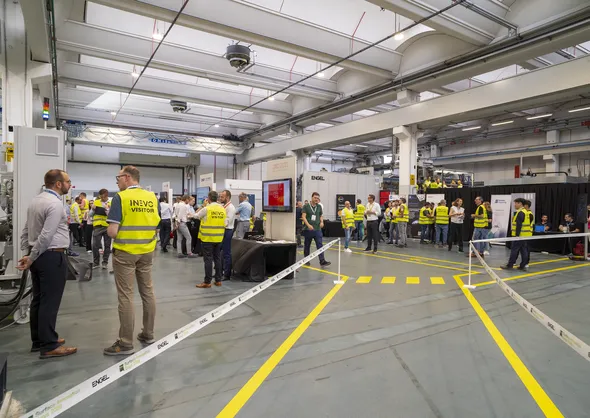

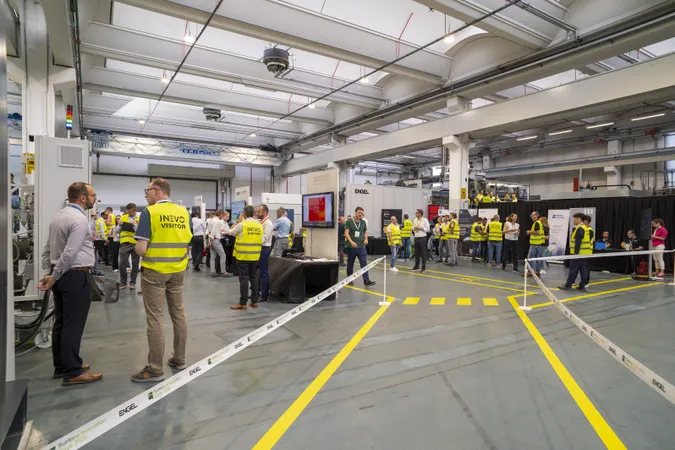

From 29 June to 2 July 2026, the ENGEL Surface Innovation Days 2026 took place at mould maker INEVO in San Polo di Piave. Over 300 trade visitors from around the world travelled to northern Italy for the event. The focus was on the economically viable flooding of components with polyurethane in the ENGEL clearmelt process, which produces scratch-resistant, self-healing Class A surfaces for large-format exterior components directly in the injection mould, without downstream painting or coating steps. Expert presentations by INEVO, ENGEL, Borealis, Mankiewicz and DNP, together with a multi-hour live demonstration on an ENGEL duo 4000 combi M two-platen injection moulding machine with 40000 kN clamping force, illustrated the high level of industrial maturity the technology has now reached for bumpers, bonnets, doors, roof modules and front and rear modules.

Flooding components with polyurethane directly in the injection mould produces high-quality, scratch-resistant, UV-resistant and weather-resistant surfaces in a single process step. The PUR systems used also show a high resistance to chemicals. Their self-healing effect causes smaller, non-abrasive scratches to disappear again even at room temperature. Downstream painting, coating and polishing processes are eliminated, as are capital-intensive and energy-intensive painting lines. The reject rate is also significantly lower than with conventional painting processes. This reduces unit costs, and CO₂ emissions fall by up to 60 %. Additional advantages include a high degree of design freedom and the ability to integrate functional films, for example for LiDAR and radar transparency or lighting functions, directly into the component. Colour and decor changes can also now be implemented during ongoing production far more easily than in a conventional painting line.

“The clearmelt technology has reached a decisive level of maturity in recent years,” said Dr. Clemens Kastner, Head of Business Development Mobility at ENGEL. “Machine technology, mould making, metering technology and materials have developed to a point where large-format Class A surfaces can now be produced economically in series production. With the ENGEL clearmelt Competence Center, we are pooling the necessary know-how and assuming overall responsibility for our customers, from the initial feasibility assessment through to series production.”

This bundled responsibility was the subject of a highly sought-after presentation by ENGEL at the event. Under the title “One Partner, One Solution: A New Era of Polyurethane Surfaces with ENGEL and the CCC”, the company outlined how machine, mould, material and metering technology for clearmelt applications can be brought together within a single organisation. The background to this is a market situation that has historically often been organisationally fragmented. Processors had to coordinate injection moulding machine manufacturers, PUR metering system suppliers, material suppliers and mould makers in parallel. This resulted in considerable coordination effort and additional interface risks.

With the clearmelt Competence Center (CCC), ENGEL assumes overall responsibility as a system supplier. Processors thus have a single point of contact throughout the entire project, from the concept phase through feasibility assessments and mould sampling to series production. This shortens coordination loops, reduces technical risks and accelerates time-to-market. The CCC operates internationally. Teams in Europe, North America and Asia collaborate across locations on applications, test planning and system design. For trials, a broadly equipped range of systems is available in St. Valentin alongside an ENGEL duo 5500 with 55000 kN clamping force, supplemented by additional capacities in Schwertberg as well as at partner mould makers and material manufacturers, including in Asia and North America. Trials can thus be placed flexibly, depending on component size, material system and logistical constraints. Enquiries to the CCC are channelled directly through the ENGEL sales organisation, so that processors receive an initial feasibility assessment and a suitable solution proposal within a short time.

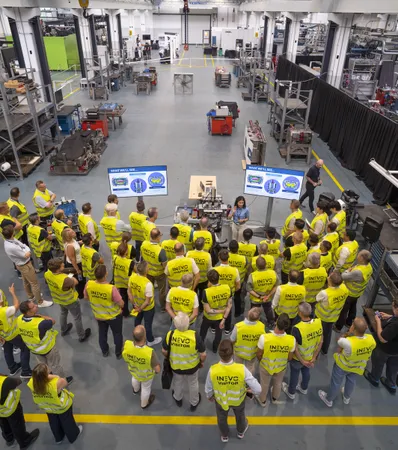

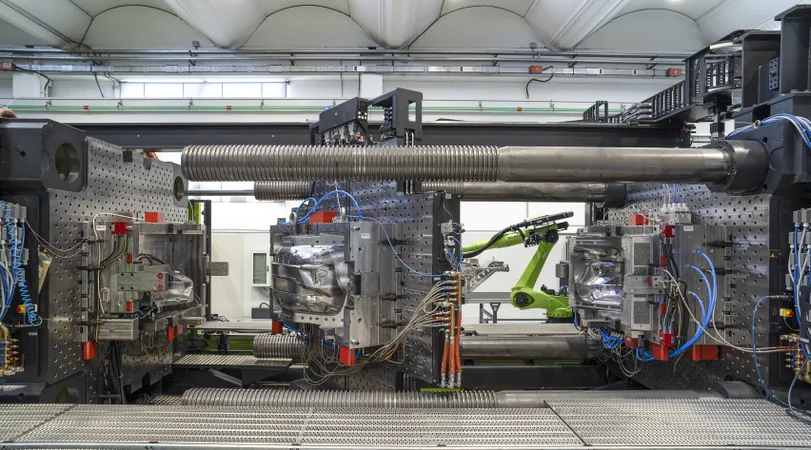

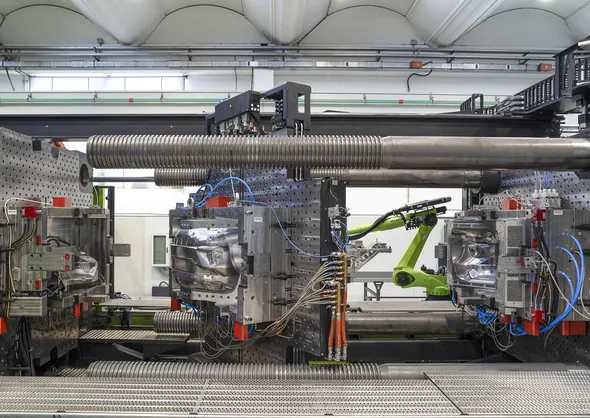

The live demonstration in INEVO’s technical centre showed just how far the industrial maturity now extends. On an ENGEL duo 4000 combi M configured as a turning-platen machine, a generic demonstrator component was produced over several hours: a bumper with an integrated front module that combines several previously separately manufactured components in a single part. The example illustrates the dimensions in which large-format exterior components can today be produced reliably and in a single continuous process.

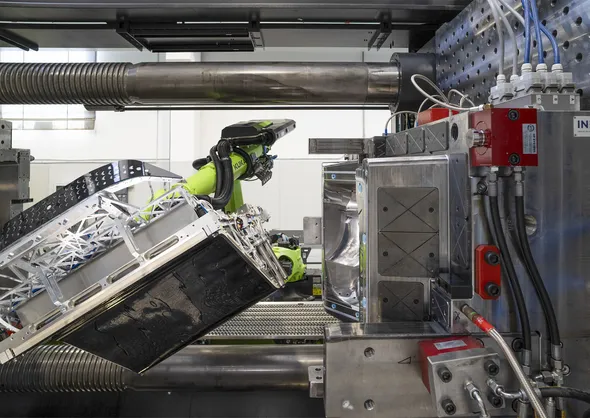

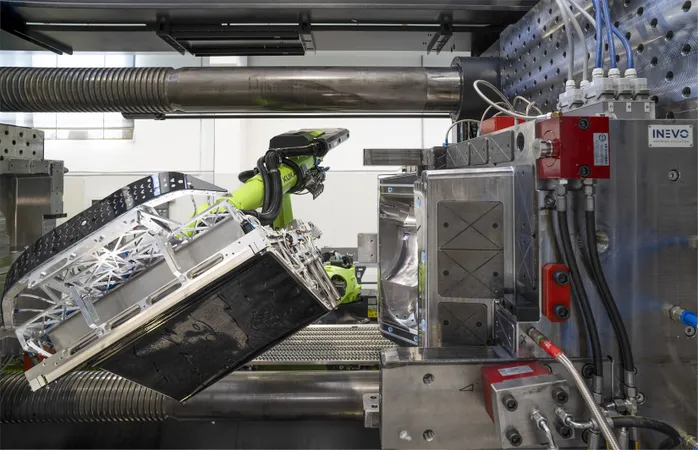

The process chain combines several processes in one mould. First, an easix articulated robot places a 2D film in the vehicle body colour into the cavity. Infrared emitters integrated into the gripper heat the film, which is then thermoformed in the cavity. A second film bearing the brand emblem is then inserted and formed in a shallower contour. Both films are back-moulded together with polypropylene. After turning the centre platen, the front panel area is flooded with polyurethane in the second station. For processors, this continuous process integration means fewer components, less assembly effort in vehicle production, a shorter process chain and lower unit costs, with consistently high reproducibility of surface quality.

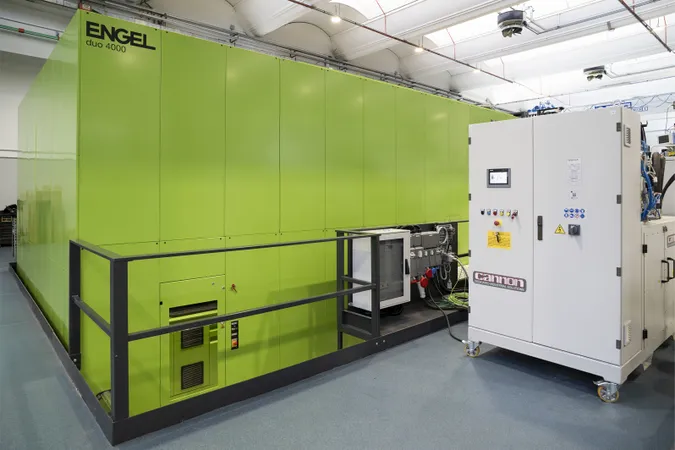

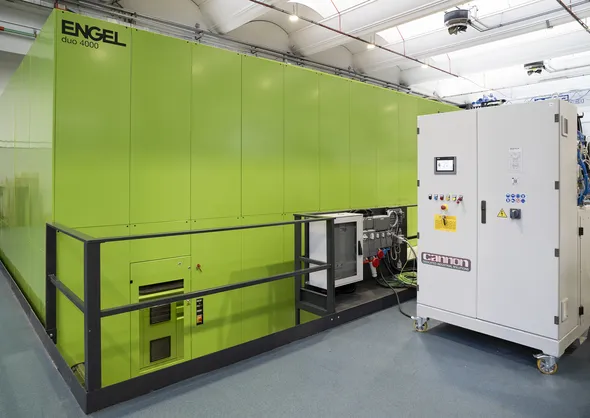

“Functional integration ranks high on the agenda in new automotive projects. Several individual parts become one highly integrated component,” said Andreas Popp, Managing Director at INEVO Germany. “With the ENGEL duo 4000 combi M in our technical centre, we are specifically expanding our component range to include large-format exterior components such as bonnets, bumpers and roof modules. The decisive factor for us was that the system combines the full range of processes required for this, from film back-moulding to flooding with polyurethane.”

With this machine, INEVO is also creating a joint testing facility with ENGEL. Processors and OEMs can qualify new component concepts and mould designs under realistic conditions before series production begins. The high demand for the test capacities in San Polo di Piave shows that interest in integrated surface solutions extends well beyond the established European markets.

The Surface Innovation Days also highlighted the market context in which this development is taking place. Painting lines account for a significant share of the CO₂ footprint in vehicle production and are both cost-intensive and maintenance-intensive. At the same time, functional integration in exterior components is increasing. The conventional bumper is evolving into a component that accommodates air intakes, headlamp housings, sensors and grilles. clearmelt surfaces meet the optical and mechanical requirements of such integrated components and in many applications replace painting entirely.

Material development is supporting this transition. Polypropylene as a substrate material is gaining importance in exterior applications because it offers cost advantages and supports requirements such as pedestrian protection. Borealis presented new material solutions for the combination with clearmelt at the event. PUR layer thicknesses have also been continuously reduced, which further lowers material costs and CO₂ footprint. The BMW iX kidney grille marked the first large-scale series application in exterior a few years ago. Roof modules, front structures, doors and accent components are now among the most frequently requested new applications.

For processors considering a transition from painting to clearmelt, the starting position has improved considerably. Machine technology, mould concepts, materials and metering technology are now series-ready. With the CCC, ENGEL provides the industrial framework to approach this step in a structured manner and with manageable risk. Early trials under realistic conditions deliver a robust data basis on component quality, cycle time and unit costs before processors commit to a series investment. This allows requirements, mould concept and system design to be aligned during a phase in which changes can still be implemented efficiently. Processors thus safeguard their investment decisions and shorten the path to stable series production.
